The 6.0L Powerstroke diesel engine, used in Ford Super Duty trucks from 2003 to 2007.
This guide explains the correct transmission fluid type for the 6.0 Powerstroke, why it matters, service intervals, and the three best transmission fluids commonly available.
6.0 Powerstroke Transmission Fluid Type

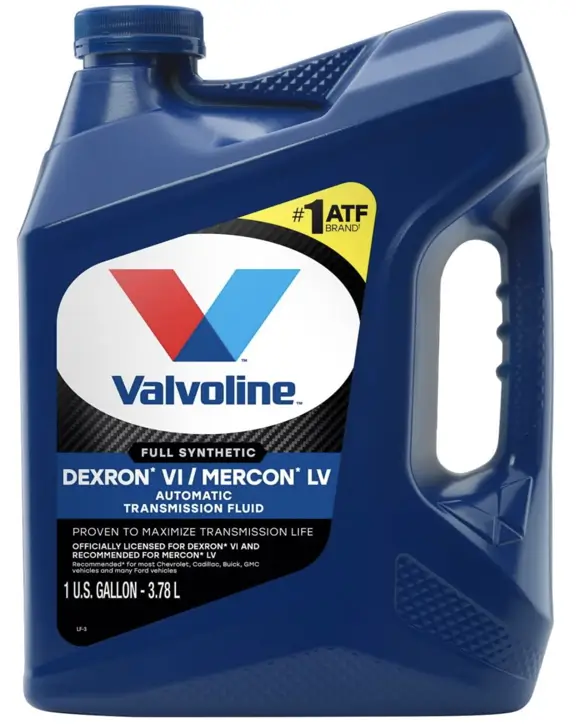

1. Valvoline Dexron VI / Mercon LV Full Synthetic ATF
Valvoline is one of the most trusted names in automotive lubricants. This full synthetic ATF is widely used in Ford Super Duty trucks and is fully compatible with Mercon LV requirements.
Features
- Full synthetic formulation for improved heat resistance
- Designed to meet Dexron VI and Mercon LV specifications
- Provides smooth, consistent shifting under load
- Excellent oxidation and shear stability
- Helps reduce transmission wear and clutch slippage
- Performs well in both high and low temperature conditions
This fluid is a popular choice for towing applications and high-mileage 6.0 Powerstroke trucks.

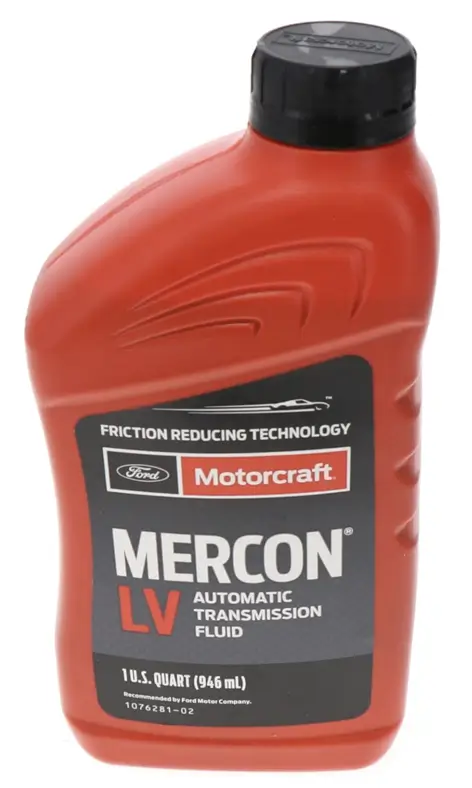

2. Motorcraft Mercon LV Automatic Transmission Fluid
Motorcraft is Ford’s official OEM brand, making this fluid the closest match to factory recommendations. It is specifically engineered for Ford transmissions that require Mercon LV.
Features
- OEM-approved fluid for Ford automatic transmissions
- Optimized friction characteristics for TorqShift transmissions
- Strong protection against wear, rust, and corrosion
- Excellent thermal stability for heavy-duty use
- Helps maintain smooth shift quality over time
- Compatible with electronic transmission controls
For owners who prefer factory-approved products, Motorcraft Mercon LV is often considered the safest option.

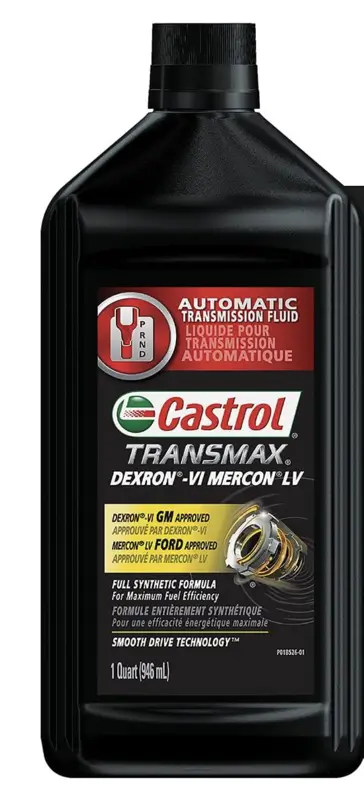

3. Castrol Transmax Dexron VI / Mercon LV ATF
Castrol Transmax ATF is a high-performance synthetic blend designed for modern automatic transmissions requiring low-viscosity fluid.
Features
- Meets Dexron VI and Mercon LV specifications
- Advanced friction modifiers for smoother shifting
- Strong resistance to heat and fluid breakdown
- Helps reduce transmission noise and vibration
- Suitable for high-load and stop-and-go driving
- Supports extended service intervals
This fluid is a solid balance between performance and value for daily-driven and work-truck applications.
Related Ford Transmission Fluid Chart(For All Models)
Understanding the 6.0 Powerstroke Transmission
Most 6.0 Powerstroke trucks are equipped with the Ford 5R110W TorqShift automatic transmission. This heavy-duty transmission was designed to handle high torque loads, frequent towing, and demanding work conditions. To function correctly, it relies on a specific automatic transmission fluid with the proper viscosity and friction properties.
Using the wrong fluid can result in:
- Harsh or delayed shifting
- Torque converter shudder
- Increased heat buildup
- Premature clutch and seal wear
- Reduced transmission lifespan
Related Transmission Fluid for Semi Truck(Top 5 Best Picks)
Recommended Transmission Fluid Type for the 6.0 Powerstroke
Factory-Specified Fluid
- Mercon SP (original factory specification)
Mercon SP was developed specifically for certain Ford transmissions, including the 5R110W TorqShift. However, this fluid has been discontinued and is no longer widely available.
Current Replacement Fluid
- Mercon LV (Low Viscosity)
Mercon LV is now the recommended replacement fluid for many applications previously using Mercon SP. Most high-quality modern ATFs labeled as Dexron VI / Mercon LV compatible are suitable for the 6.0 Powerstroke transmission.
Important notes:
- Do not use Mercon V or Type F fluid
- Do not mix incompatible ATF types
- Always confirm the fluid requirement in your owner’s manual or transmission documentation
Related Red Fluid Leaking from Truck(4 Causes + Solutions)
Transmission Fluid Capacity Overview
While capacity can vary slightly depending on configuration and service method:
- Drain and refill: Approximately 7–8 quarts
- Pan drop with filter change: Approximately 13–15 quarts
- Complete flush: Up to 17–18 quarts
Always check fluid level with the engine running and transmission at operating temperature.
How Often Should You Change Transmission Fluid?
Ford does not always list a strict interval, but real-world experience suggests:
- Normal driving: Every 60,000 miles
- Towing, hauling, or heavy use: Every 30,000–40,000 miles
Regular fluid changes help maintain proper hydraulic pressure, reduce heat, and protect internal components.
Related 4L60E Transmission Rebuild Kit(Top 3 Best Options 2026)
Tips for Changing Transmission Fluid on a 6.0 Powerstroke
- Warm the transmission before draining to ensure better fluid flow
- Always replace the transmission filter during a fluid service
- Clean the pan and inspect for excessive metal debris
- Use the correct torque specs when reinstalling the pan
- Check fluid level with the engine running and transmission in park
- Avoid overfilling, as it can cause foaming and erratic shifting
Common Transmission Fluid Mistakes to Avoid
- Using Mercon V instead of Mercon LV
- Mixing different ATF types
- Skipping the filter replacement
- Ignoring early signs of fluid contamination
- Delaying fluid changes when towing frequently
Correct fluid choice and maintenance can prevent many expensive transmission problems.
Final Thoughts
Choosing the correct 6.0 Powerstroke transmission fluid type is essential for maintaining performance, reliability, and longevity. While Mercon SP was the original specification, Mercon LV-compatible fluids are now the practical and widely accepted replacement.
High-quality options such as Valvoline Dexron VI / Mercon LV, Motorcraft Mercon LV, and Castrol Transmax ATF provide excellent protection, smooth shifting, and thermal stability for the 5R110W TorqShift transmission.
