The NV5600 is a heavy-duty six-speed manual transmission best known for its use in Dodge Ram 2500 and 3500 trucks equipped with Cummins diesel engines.
This guide explains what type of fluid the NV5600 requires, why fluid choice matters, and highlights three of the best NV5600-compatible transmission fluids commonly available.
NV5600 Transmission Fluid

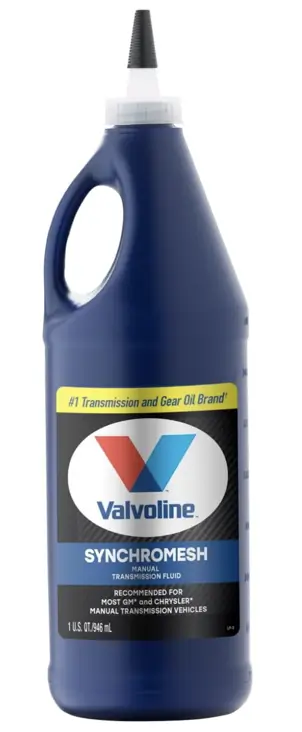

1. Valvoline Synchromesh Manual Transmission Fluid
Valvoline Synchromesh Manual Transmission Fluid is a popular and cost-effective option that closely matches OEM synchromesh requirements.
Key Features
- Designed for synchronized manual gearboxes
- Helps reduce notchy or stiff shifting
- Provides reliable wear protection for gears and bearings
- Compatible with bronze and composite synchronizers
- Stable performance for daily driving and light towing
- Backed by a long-standing lubricant manufacturer
Best For: Routine maintenance, daily driving, and owners looking for a dependable fluid at a reasonable price.

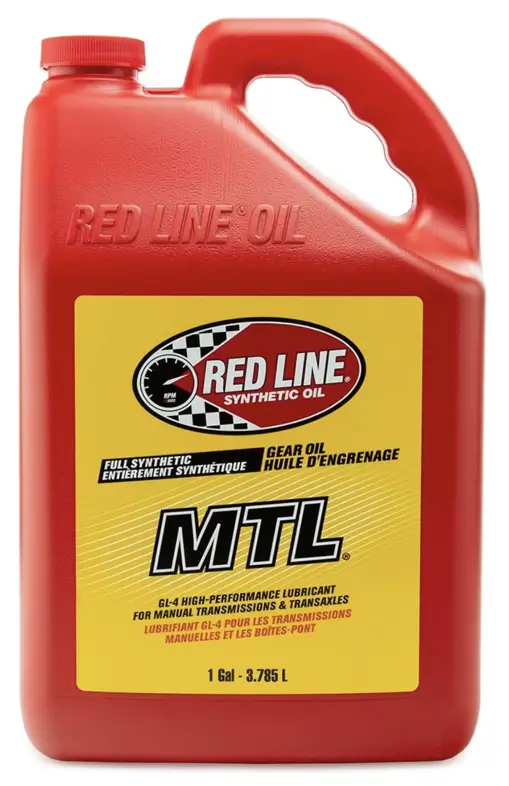

2. Red Line SAE 75W-80 GL-4 Manual Transmission Oil
Red Line 75W-80 GL-4 is a high-performance manual transmission oil often chosen by enthusiasts and performance-focused truck owners.
Key Features
- GL-4 formulation is safe for synchronizers
- High film strength for extreme load protection
- Excellent shear stability
- Smooth, precise gear engagement
- Strong resistance to thermal breakdown
- Suitable for severe-duty and performance use
Important Note: This fluid is not a traditional synchromesh 5W-30 oil. While many NV5600 owners report positive results, it is best suited for experienced users who understand their operating conditions.Best For: Performance driving, heavy hauling, and high-stress applications where extra gear protection is desired.

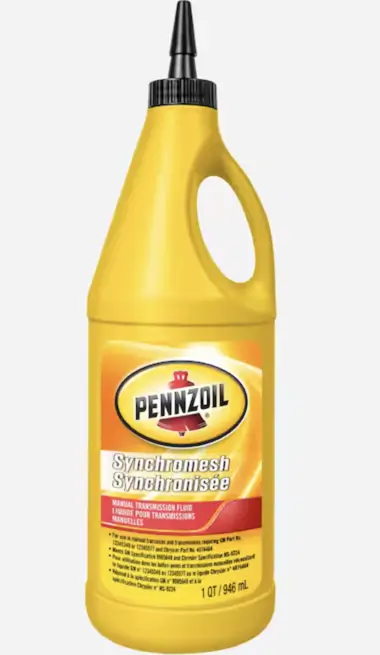

3. Pennzoil Synchromesh Manual Transmission Fluid
Pennzoil Synchromesh Manual Transmission Fluid is a commonly recommended alternative for heavy-duty synchronized manual transmissions like the NV5600. It closely matches OEM synchromesh requirements and is known for improving shift quality.
Key Features
- Designed specifically for synchromesh manual transmissions
- Helps reduce gear clash and hard shifting
- Provides stable friction characteristics for synchronizers
- Protects gears, bearings, and internal components
- Maintains consistent performance in hot and cold temperatures
- Suitable for high-torque diesel applications
This fluid is widely used as a direct replacement for factory-recommended synchromesh oils and is a reliable option for NV5600 transmissions in daily driving and towing conditions.
Best For: Heavy towing, high-mileage trucks, and owners seeking maximum protection and smooth shifting.
Related 6.7 Cummins Transmission Fluid Type(+ Top 5 Best Picks 2026)
What Type of Fluid Does the NV5600 Use?
The NV5600 does not use conventional gear oil, automatic transmission fluid, or engine oil. Instead, it is designed to run on a synchromesh manual transmission fluid.
Synchromesh fluid is formulated specifically for manual transmissions with synchronizers. These synchronizers rely on carefully balanced friction properties to match gear speeds during shifting. Using the wrong fluid can cause hard shifting, gear grinding, or premature wear.
Key NV5600 Fluid Requirements
- Synchromesh-type manual transmission fluid
- Approximately 5W-30 viscosity
- Designed for synchronized manual gearboxes
- Compatible with bronze synchronizer materials
Using thick gear oils such as 75W-90 or GL-5 lubricants can damage synchronizers, while ATF does not provide sufficient protection for the NV5600’s heavy-duty gear set.
Related Land Rover Transmission Fluid(Top 5 Best Picks 2026)
Why the Correct Fluid Is So Important
The NV5600 operates under high load, especially in towing and hauling applications. The right fluid ensures:
- Smooth and consistent gear engagement
- Reduced synchronizer wear
- Proper lubrication of bearings and gears
- Better cold-weather shifting
- Improved transmission longevity
Many NV5600 shifting complaints are caused not by mechanical failure, but by incorrect or degraded fluid.
NV5600 Fluid Capacity
The NV5600 transmission typically requires approximately 4.5 to 5 quarts of fluid when fully drained. Capacity can vary slightly depending on model year and whether the transmission has been completely emptied.
Some owners slightly overfill within safe limits to ensure better lubrication of internal components, but the fluid level should always be checked according to factory procedures.
Related 2 Speed Powerglide Transmission Fluid Type(Top 3 Best Picks)
Recommended Fluid Change Intervals
Although manual transmissions often have longer service intervals than automatics, regular fluid changes greatly improve NV5600 longevity.
Suggested intervals:
- Severe duty or towing: every 30,000–50,000 miles
- Normal driving: every 60,000–100,000 miles
- After rebuilds or contamination: immediate change
Fresh fluid restores proper friction characteristics and removes metal particles that accumulate over time.
Common Fluid-Related Mistakes to Avoid
- Using GL-5 gear oil: Too slippery for synchronizers and may cause gear clash
- Using automatic transmission fluid: Insufficient protection for heavy gears
- Mixing fluid types: Can cause inconsistent friction behavior
- Ignoring fluid condition: Old or contaminated fluid accelerates wear
Always drain completely before switching fluid types.
Cold Weather and Shift Quality
Synchromesh fluids are especially beneficial in cold climates. They maintain better flow characteristics at low temperatures, reducing stiff shifting during cold starts. This is a major advantage over thick gear oils, which can feel sluggish until fully warmed.
FAQs
How much transmission fluid does a NV5600 take?
The NV5600 transmission typically takes about 4.5 to 5 quarts of fluid when fully drained. Exact capacity can vary slightly depending on the model year and whether the transmission was completely emptied. The fluid level should always be checked at the fill plug with the truck sitting level.
What fluid goes in an Aisin transmission?
Most Aisin automatic transmissions used in heavy-duty trucks require ATF+4 or a manufacturer-approved equivalent, depending on the specific model. Aisin manual transmissions, on the other hand, usually use a manual transmission gear oil or synchromesh fluid specified by the vehicle manufacturer. Always verify the exact Aisin model before adding fluid.
What kind of oil goes in an Eaton 6 speed transmission?
Most Eaton 6-speed manual transmissions use heavy-duty manual transmission oil, typically a 50-weight or 75W-80/75W-90 manual transmission fluid, depending on the application. Eaton transmissions generally do not use ATF unless explicitly specified for a specific model.
Can I use ATF instead of ATF +4?
No, ATF should not be used in place of ATF+4 unless the vehicle manufacturer explicitly allows it. ATF+4 has specific friction modifiers and thermal stability properties that standard ATF does not provide. Using regular ATF can cause poor shifting, overheating, and accelerated wear.
How much oil does a 2001 NV5600 take?
A 2001 NV5600 transmission typically holds approximately 4.5 to 5 quarts of synchromesh manual transmission fluid. As with other NV5600 models, the final fluid level should be set at the fill plug with the vehicle on level ground.
How many gears does a NV5600 transmission have?
The NV5600 is a 6-speed manual transmission with six forward gears and one reverse gear. It is designed for heavy-duty applications and high-torque diesel engines.
How heavy is a NV5600 transmission?
The NV5600 transmission weighs approximately 360 to 370 pounds (163 to 168 kg) without fluid. Its heavyweight reflects its robust construction, large gears, and ability to handle high torque loads.
Final Thoughts
The NV5600 is a strong, reliable transmission, but it is also very sensitive to fluid choice. Using the correct synchromesh-compatible transmission fluid ensures smooth shifting, reduced wear, and long-term reliability.
Among the best options, Amsoil Manual Synchromesh Transmission Fluid offers top-tier performance, Valvoline Synchromesh provides excellent value and reliability, and Red Line 75W-80 GL-4 delivers superior protection for demanding use cases.
