In this guide, we’ll break down the correct fluid type for the Ram 3500 Aisin transmission, why it matters, how it differs from other Ram transmissions, and the best transmission fluid options available.
Ram 3500 Aisin Transmission Fluid Type
1. AISIN ATF-0T4 Automatic Transmission Fluid
Features:
- OEM Aisin-manufactured fluid
- Designed specifically for AS69RC transmissions
- Excellent shear stability under towing loads
- Smooth shifting performance under heavy torque
- Matches factory fill specification
This is the closest option to “factory fill” fluid and is the safest choice for full compatibility.

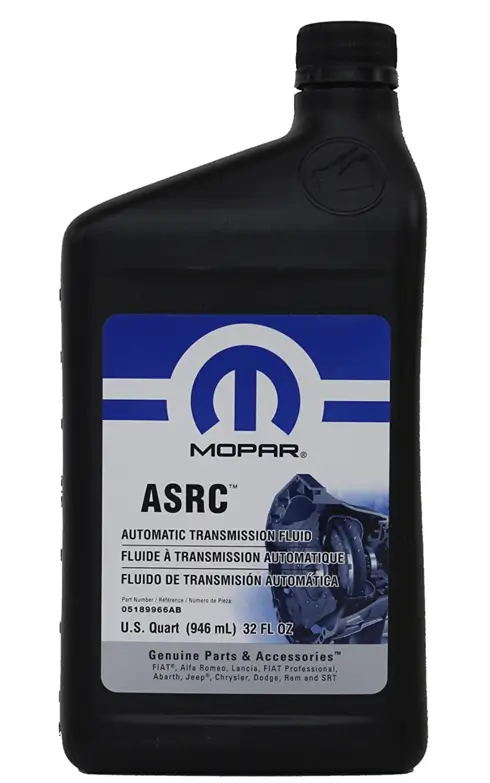

2. Mopar ASRC Automatic Transmission Fluid
Features:
- Genuine Chrysler OEM fluid for Ram Aisin transmissions
- Fully compatible with AS69RC specifications
- High thermal resistance for towing applications
- Protects clutch packs and valve body components
- Designed for the Cummins high-output torque load
This is the dealership-recommended fluid and is ideal if you want to stay OEM strictly.
Related Aisin Transmission Fluid Compatibility Chart(For All Models)

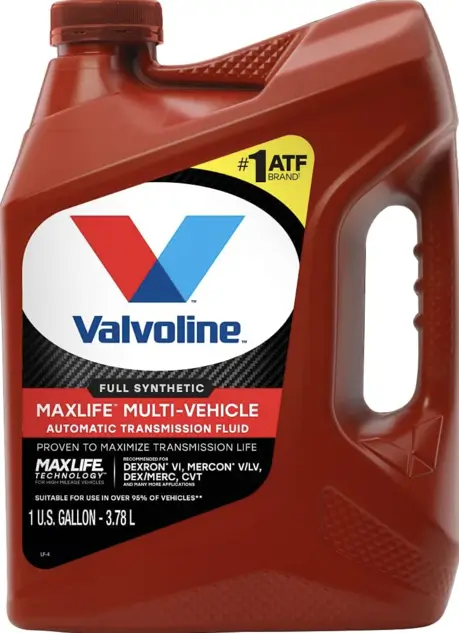

3. Valvoline MaxLife Multi-Vehicle Full Synthetic ATF
Features:
- Widely available and trusted aftermarket alternative for diesel and gas vehicles
- Full synthetic formulation for long service life
- Compatible with a wide range of transmissions, including many Aisin T-IV / JWS 3309 applications
- Excellent anti-shudder performance for smooth shifting
- Strong high-temperature protection for towing and heavy-duty use
- Enhanced friction modifiers for stable clutch engagement
Related Ram ProMaster Transmission Fluid Level Chart(For All Models)
What Transmission Does the Ram 3500 Aisin Use?
The Ram 3500 heavy-duty diesel (especially High Output Cummins models) uses the Aisin AS69RC 6-speed automatic transmission.
This transmission is:
- Built for high torque applications (towing, hauling, commercial loads)
- Stronger than the 68RFE in many duty cycles
- Electronically controlled with a torque converter lockup system
Factory specifications confirm that this transmission requires a special Aisin-specific ATF fluid, not standard ATF+4 in most cases.
Related NV4500 Transmission(Details, Features & Maintenance)
Correct Fluid Type for Ram 3500 Aisin Transmission
The recommended transmission fluid is:
Aisin ASRC Automatic Transmission Fluid (Factory Spec)
This fluid is sometimes labeled as:
- Mopar ASRC ATF
- Aisin T-IV / JWS 3309 compatible fluid
- OEM-equivalent AS69RC fluid
Key point:
The Aisin transmission does NOT use generic fluid, it requires a low-viscosity, high-friction stability ATF designed for Aisin gearsets.
Can You Use ATF+4 in Aisin AS69RC?
This is where confusion happens.
- Some older Ram transmissions use ATF+4
- Some sources list compatibility in specific conditions
- However, the AS69RC is specifically calibrated for Aisin ASRC fluid
Using the wrong fluid can cause:
- Harsh shifting
- Slipping or delayed engagement
- Excess heat buildup
- Long-term clutch wear
So while ATF+4 is common in Ram trucks, it is not the primary spec for the Aisin AS69RC.
Related Universal Transmission Fluid[Top 5 Best 2026]
Why Fluid Type Matters So Much
The Aisin transmission is engineered with tight tolerances and high-pressure hydraulic control. That means the fluid must:
- Maintain stable viscosity under heavy load
- Provide the correct friction coefficient for clutch packs
- Resist breakdown under towing heat conditions
- Protect valve body operation and solenoids
If the fluid does not meet the required spec, the transmission performance quickly degrades, especially under towing stress.
Fluid Change Interval (Important)
For Ram 3500 Aisin transmissions, typical service guidance is:
- Normal use: 30,000–60,000 miles (fluid + filter)
- Severe use (towing, hauling, hot climates): closer to 30,000 miles
Frequent towing shortens fluid life significantly because heat is the biggest enemy of ATF.
Related ATF MV Transmission Fluid(5 Best Options 2026)
How to Choose the Right Fluid
When selecting fluid for your Ram 3500 Aisin transmission, focus on:
OEM specification compliance
Always match:
- ASRC spec
- Aisin T-IV / JWS 3309 equivalent rating
Heat resistance
Critical for towing heavy loads or long highway drives.
Synthetic quality
Full synthetic fluids perform better under stress and last longer.
FAQs
What type of transmission fluid does a Ram 3500 take?
The Ram 3500 can use different transmission fluids depending on the transmission it is equipped with. Models with the Aisin AS69RC transmission require Aisin ASRC-spec automatic transmission fluid (or equivalent JWS 3309-compatible ATF). Models with the 68RFE transmission typically use Mopar ATF+4 fluid. Always match the fluid to the exact transmission type in your truck.
How many quarts of transmission fluid does a Dodge Ram 3500 take?
The fluid capacity depends on the transmission and service type. On average:
- Aisin AS69RC: about 12–13 quarts (full dry fill), 7–9 quarts for a service drain
- 68RFE: about 17–19 quarts (full fill), 5–7 quarts for a pan drain and filter change
Actual capacity can vary slightly depending on model year and whether the torque converter is drained.
How much transmission fluid does a 2017 Ram 3500 AISIN take?
The 2017 Ram 3500 with the Aisin AS69RC transmission typically holds:
- Around 12–13 quarts total capacity (dry fill)
- About 7–9 quarts during a standard fluid and filter service
This transmission is sensitive to fluid level, so the correct filling procedure (temperature-based checking) is very important.
What kind of transmission is in a Ram 3500 diesel?
The Ram 3500 diesel (6.7L Cummins) comes with two main transmission options:
- Aisin AS69RC 6-speed automatic transmission (high-output towing models)
- 68RFE 6-speed automatic transmission (standard-output models)
The Aisin is built for heavier towing and commercial-grade durability, while the 68RFE is more common in lighter configurations.
What ATF does a 68RFE take?
The 68RFE transmission uses Mopar ATF+4 automatic transmission fluid. This fluid is specifically formulated for Chrysler automatic transmissions and provides:
- Proper friction characteristics for clutch packs
- Heat resistance for towing conditions
- Smooth shifting performance
Using the correct ATF+4 fluid is essential for maintaining shift quality and transmission longevity in the 68RFE system.
Final Thoughts
The Ram 3500 Aisin AS69RC transmission is a powerful but highly specific system. It is not forgiving when it comes to fluid choice.
The safest approach is:
- Use Aisin ASRC or Mopar ASRC fluid for OEM accuracy
- Stick to synthetic, high-temperature stable ATF
- Avoid mixing unknown or generic transmission fluids
Proper fluid selection directly impacts:
- Transmission lifespan
- Shifting smoothness
- Towing performance
- Long-term reliability
If you maintain it correctly, the Aisin transmission can handle extreme workloads for hundreds of thousands of miles.
